Upward Hydraulic H Beam Straightening Machine 4000-15000mm

Name: Upward Hydraulic H Beam Straightening Machine 400015000mm
Brand: KAWE
Price: 30 USD

Buy cheap Upward Hydraulic H Beam Straightening Machine 4000-15000mm product

Brand Name : KAWE

Model Number : KYJ-60B

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD 30,000-60,000

Supply Ability : 1set/30days

Delivery Time : 30days

Packaging Details : export standard package

Model : Heavy Duty

Mode : Press upward

Material : Q345

Power : Hydraulic

Flange width(mm) : 200-800

Workpiece length(mm) : 4000-15000

Contact Now

Upward Hydraulic Straightening Machine

Technical process:

H beam flange straightening machine is suitable for straightening the deformation of h beam after welding. Its main transmission adopts the drive motor and big torque reducer, the transmission efficiency is high, the straightening speed is fast. The screwdown device is driven by motor or hydraulic, with large output torque and smooth operation. All the rollers are made of high quality alloy steel and advanced heat treatment to avoid the defects of cracks.

Technical parameters

model parameter	KJZ-40	KYJ-60S	KYJ-60	KYJ-80
Flange thickness(mm)	6-40	6-60	6-60	8-80
Flange width(mm)	200-800
Web hight(mm)	≥200(small compression roller)；≥350(big compression roller)
Workpiece length(mm)	4000-15000
Material of workpiece	Q235		Q345
Straightening speed(mm/min)	9000	6300	5200	5200

Product Tags:

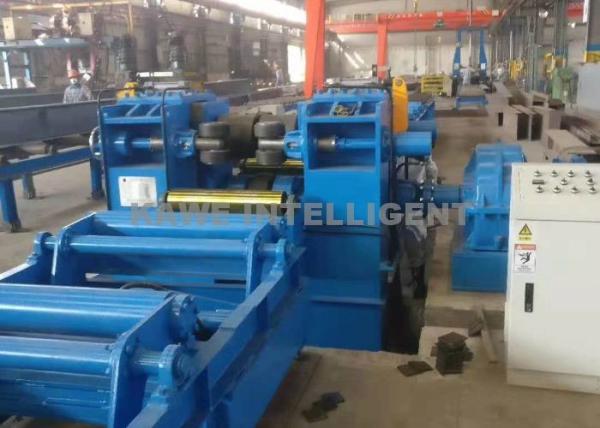

Upward Hydraulic H Beam Straightening Machine 4000-15000mm Images
